Most Popular Products
|
Copper flexible busbar
1040 INR/Unit
Product Details:
- Core Material Copper
- Usage & Applications Electrical connection in compact spaces
- Conductor Type Copper strips
- Cable Type Flexible Copper Busbar
- Rated Temperature -20C to 105C
- Conductor Shape Flat
- Insulation Special high flexible PVC insulation
- Click to View more
X
Copper flexible busbar Price And Quantity
- 1 Unit
- 1040 INR/Unit
Copper flexible busbar Product Specifications
- PVC
- Flexible Copper Busbar
- PVC
- Available sizes: 20x2x1mm (2mtr) 20x3x1mm (2mtr) 24x3x1mm (2mtr) 24x4x1.5mm (5mtr)
- Copper Flexible Busbar
- Black and Copper
- Copper strips
- Electrical connection in compact spaces
- Copper (Cu 99.9% standard) / F-Cu tinned (optional)
- Copper
- 750V AC / 1000V DC
- Various lengths (2mtr 5mtr)
- Flat
- Special high flexible PVC insulation
- Flexible Busbar
- -20C to 105C
- Black

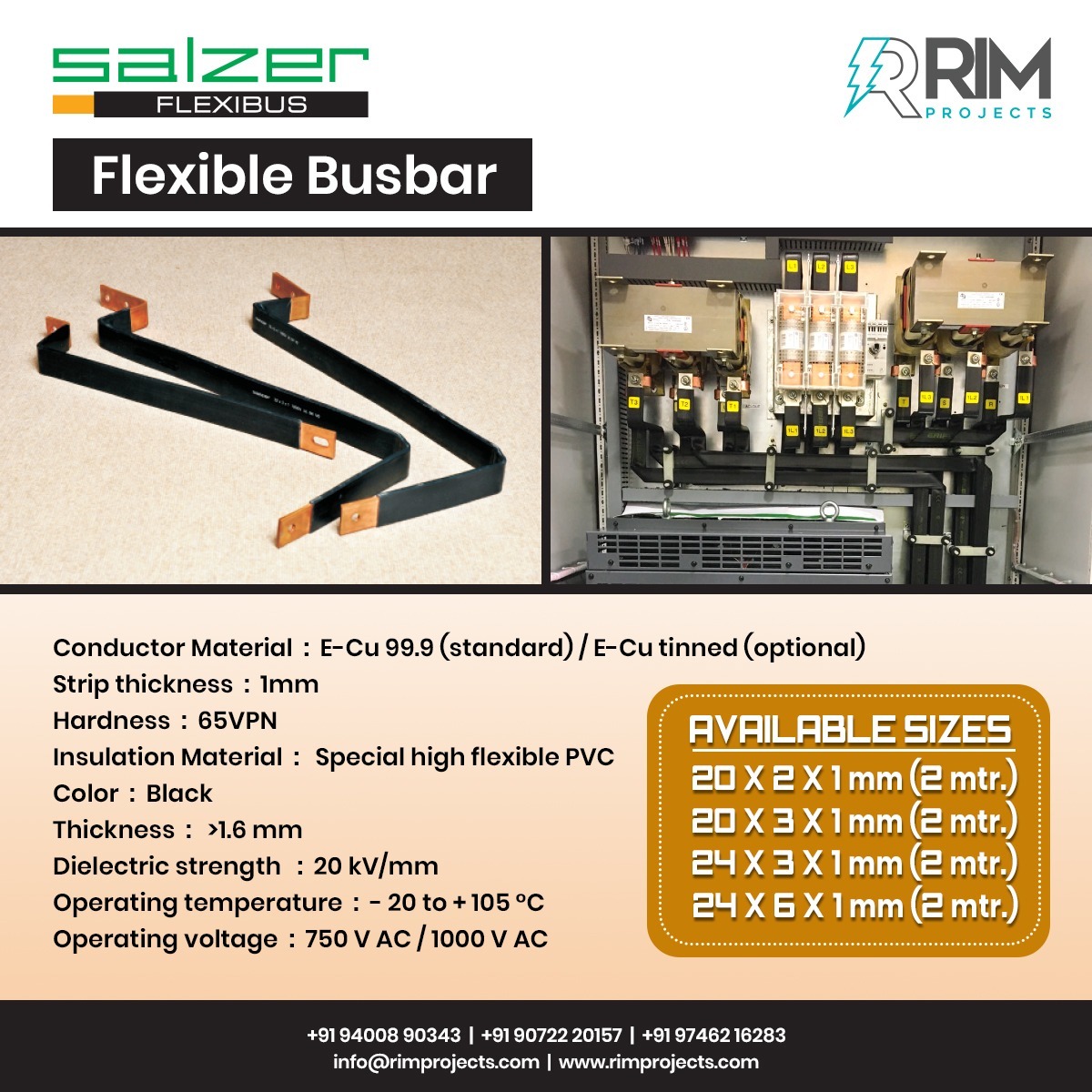

Product Description
Conductor material: E-Cu 99.9(Standard) / E-Cu tinned (optional)
Strip thickness: 1 mm
Hardness: 65VPN
Insulation material: Special high flexible PVC
Color: Black
Thickness: >1.6 mm
Dielectric Strength : 20 kV/mm
Operating temperature: -20 to +105 C Operating voltage : 750V AC/1000V AC
Available Sizes
20x2x1 mm(2mtr)
20x3x1 mm(2mtr)
24x3x1 mm(2mtr)
24x6x1 mm(2mtr)
FAQs of Copper flexible busbar:
Q: What is the conductor material of the Copper flexible busbar?
A: The conductor material of the Copper flexible busbar is Copper (Cu 99.9% standard) / F-Cu tinned (optional).Q: What is the insulation material used in the Copper flexible busbar?
A: The Copper flexible busbar uses special high flexible PVC insulation for insulation.Q: What are the available sizes and dimensions of the Copper flexible busbar?
A: The available sizes and dimensions of the Copper flexible busbar are: 20x2x1mm (2mtr), 20x3x1mm (2mtr), 24x3x1mm (2mtr), and 24x4x1.5mm (5mtr).Q: What is the rated temperature range for the Copper flexible busbar?
A: The rated temperature range for the Copper flexible busbar is -20C to 105C.Q: What is the application of the Copper flexible busbar?
A: The Copper flexible busbar is used for electrical connection in compact spaces.Tell us about your requirement
